Dockerized SSE MCP Servers and Clients - part 1

Github Repos for reference

• API, Servers and Client

💡 All tools and models used here are exchangeable with other models and libraries.

Context Diagram

Purpose of this post:

Exploring further from my previous post, I wanted to check out how MCP can be made more accessible over established HTTP protocol so that other security mechanism can be plugged in to that. Model Context Protocol supports STDIO (local tool execution) and SSE and Streamable HTTP (remote execution). Below is a high level comparison:

Use case

In this post, we will try to help a highschooler who is trying to gather information on his target schools and majors.

Components

While we are continuing with previous example, this time we will implement the followings:

• Dockerize the APIs
• Create SSE MCP servers using FASTMCP python sdk
• Dockerize the MCP Server
• Deploy all three docker containers in local laptop.
• Build an MCP client (as Claude desktop doesn’t support SSE servers yet) using Langchain MCP Adapters

In next post we will deploy them on cloud and hook up OAuth in that.

Project Structure

├── api
│   ├── **pycache**
│   ├── README.md
│   ├── school_rag_api
│   └── school-list
├── Architecture
│   └── architecture.drawio
├── client
│   ├── main.py
│   ├── mcp_client.py
│   ├── pyproject.toml
│   ├── README.md
│   └── uv.lock
└── servers
└── school_server

Just to demonstrate flexibility, my school-list API is a nestJS project while school_rag_api is a FASTAPI one. servers folder holds the MCP server and client has the code for mcp client.

SSE MCP Servers

Few key differences to note while building SSE MCP servers:

• The function needs to be an async not a regular function
• I am using FastMCP sdk where we define which port this server will listen to (this case 3501)
• Finally when running MCP server, indicate which transport (stdio, sse or streamable-http) to run the mcp server

# Initialize FastMCP server
mcp = FastMCP(
    name="School List",
    port=3501,
    on_duplicate_tools="error" # Set duplicate handling
    )

# MCP tool to fetch school data
@mcp.tool()
async def get_schools() -> dict:
    """This tool fetches school data from the schools API."""
    async with httpx.AsyncClient() as client:
        print("calling api")
        school_list_api_endpoint = os.getenv("SCHOOL_LIST_API_ENDPOINT", "http://school-list-api:3100/schools")
        response = await client.get(f"{school_list_api_endpoint}")
        response.raise_for_status()
        return response.json()
.....
.....
if __name__ == "__main__":
    # mcp.run(transport="streamable-http")
    mcp.run(transport="sse")

Containerization

Dockerization is quite standard practice for these components. Few key issues that to be noted:

• Ensure proper installation of dependencies as Python 13.2 is quite new RUN pip install --no-cache-dir uvicorn fastapi httpx mcp-server python-dotenv - this gave me some grief

# Use a slim Python 3.13 base image
FROM python:3.13-slim

# Set working directory
WORKDIR /app

# Install system dependencies
RUN apt-get update && apt-get install -y \
    curl \
    build-essential \
    && rm -rf /var/lib/apt/lists/*

# Install uv
RUN pip install uv

# Copy uv configuration files
COPY pyproject.toml uv.lock ./

# Install dependencies with uv
RUN pip install --no-cache-dir uvicorn fastapi httpx mcp-server python-dotenv
RUN uv sync --frozen
# Copy the entire project, including data, website_content, and school_list.py
COPY . .
# COPY ../servers/school_server/school_list.py ./school_list.py
# COPY ../servers/school_server/.env ./.env

# Expose ports 3200 (FastAPI) and 3501 (MCP SSE)
EXPOSE 3501

# Run the MCP SSE server
CMD ["uv", "run", "python", "school_list.py"]

• To run this locally on localhost, I needed to create a local docker network and attach each of docker images in that. This is required to ensure MCP server can access the APIs.

  This will be replaced by cloud deployment design (e.g. K8S egress/ingress etc later)

docker network create school-network
docker run --rm -d \
  --name school-list-api \
  -p 3100:3100 \
  --network school-network \
  school-list-api

docker run --rm -d \
  --name school-rag-api \
  -p 3200:3200 \
  --network school-network \
  school-rag-api

docker run --rm -d \
  --name school-mcp-server \
  -p 3501:3501 \
  --network school-network \
  -e SCHOOL_LIST_API_ENDPOINT=http://school-list-api:3100/schools \
  -e SCHOOL_RAG_API_ENDPOINT=http://school-rag-api:3200/chat \
  school-mcp-server

Custom MCP Client

Decided to use Langchain multi MCP adapter for creating MCP client.

from langchain_mcp_adapters.client import MultiServerMCPClient
from langchain_mcp_adapters.tools import load_mcp_tools
from langchain_openai import ChatOpenAI
from langgraph.prebuilt import create_react_agent
...
...
url = os.getenv("SSE_SERVER_ENDPOINT")
    client = MultiServerMCPClient(
        {
            "school-server-sse": {
                "url":url,
                # "transport": "streamable_http",
                "transport": "sse",

            }
        })
    # tools = []
    tools = await client.get_tools()
    pprint.pprint ( tools, indent=3)
    agent = create_react_agent(llm, tools)
    result = await agent.ainvoke(
        {"messages": "Tell me about research opportunities for aersopace engineering"}
    )

    print(result["messages"][-1].content)

Few key call outs:

• OpenAI is used here - but it can be replaced by other LLMs easily as you see in the code langchain client actually abstracts the LLMs from execution
• Unlike Claude Desktop, this doesn’t force user confirmation before executing tools.
• Below is a quick dump of tools object as get_tools is called.

[  StructuredTool(name='get_schools', description='This tool fetches school data from the schools API.', args_schema={'properties': {}, 'title': 'get_schoolsArguments', 'type': 'object'}, response_format='content_and_artifact', coroutine=<function convert_mcp_tool_to_langchain_tool.<locals>.call_tool at 0x105432f20>),
   StructuredTool(name='get_school_rag', description='\nThis tool executes the RAG pipeline and gets relevant text which will be sent to LLM.\nUse this tool for any school related query around cost, course curriculum, accomodation, location, admission etc\n', args_schema={'properties': {'query': {'title': 'Query', 'type': 'string'}}, 'required': ['query'], 'title': 'get_school_ragArguments', 'type': 'object'}, response_format='content_and_artifact', coroutine=<function convert_mcp_tool_to_langchain_tool.<locals>.call_tool at 0x1054cb740>)]

Like it or not, Langchain and MCP sdk and apis keep on changing. So it’s better to always keep the documentations handy.

FASTMCP Documentation

Langchain MCP Adapter Documentation

MCP Official Documentation

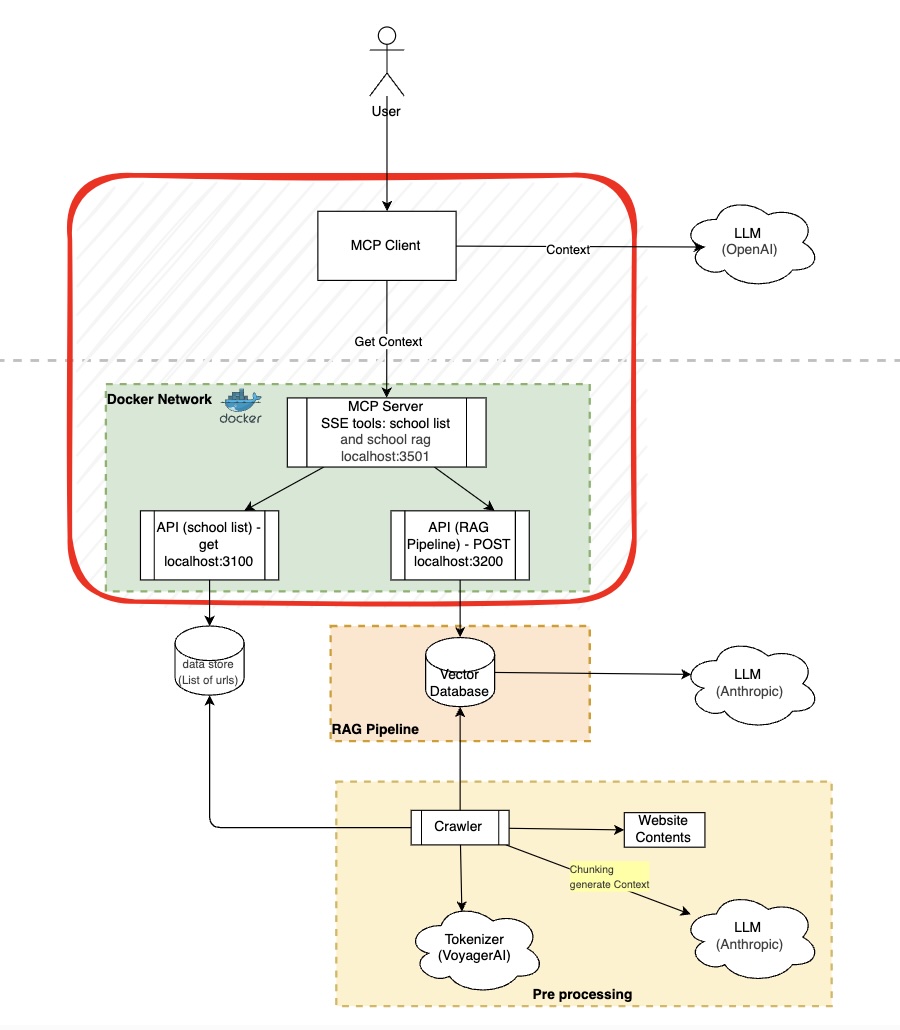

Architecture

Chat Flow
